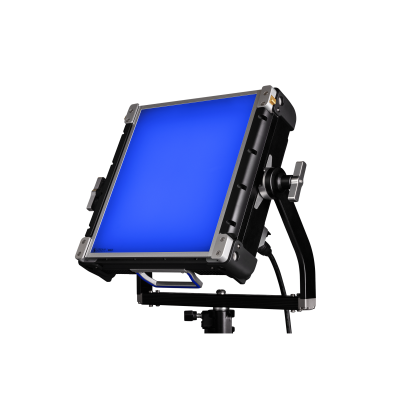

Creamsource Vortex4
Vortex4 is powerful 1×1 LED RGBW fixture with CCT ranging from 2200K to 15000K that can be used as a hard punch light to bounce or push through diffusion, or as a creamy soft light
The Vortex4 is a 1×1 RGBW All-In-One system with PSU and antennas integrated, reading 7300lux @3m on the meter. This fixture has a CCT range from 2200K to 15000K. Vortex can be used as a hard light or soft light with the Creamsource Diffuser or Dome.
Effects and colour gels and our latest technology ‘FrameSync’ are built into the latest CreamOS architecture. Like it’s big brother, Vortex4 has no problem with weather, messy effects machines or extreme dust. The Vortex4 is IP65 water resistant and sealed for the ultimate security and efficiency.
More info
Protection Class
IP65
Beam Angle Naked
20°
Maximum Ambient Temperature
40°C
Features
A premium high powered 1×1 LED fixture designed for heavy use in all conditions.
IP65 Water resistant with a built in power supply and all the advanced connectivity for professional use.
Optimised for a range of applications with RGBW, a wide CCT range and high speed modes for shooting up to 5000fps.
Sync Input for Triggering and Syncing to Camera Shutter.
Output
325W of LED power providing the equivalent output to a HMI 575W Fresnel.
A native 20° beam angle for extreme punch and intensity. This can be diffused with the Creamsource Dome.
With the high power output an active cooling system is in place with nearly silent fans and effective heat dissipation through the machined chassis.
Specifications
| Head Weight: | 9.76kg / 21.5lb |
| Dimensions: | 380 x 380 x 121mm / 15” x 15” x 4.8” (Excluding Yoke) |
| Beam Angle naked: | 20° |
| Maximum Ambient Temperature: | 40°C |
| Colour range | CCT: 2200 – 15000K, Plus/Minus Green, Hue/Saturation, XY, Gels, Direct RGBW, effects |
| CRI | Typical 95 |
| TLCI | Typical 95 |
| Colour Temperature | between 2200K – 15000K |
| Mounting | 8x 3/8” Threaded Insert Rigging Points |
| Yoke | Removable (Quick Release System). |
| Filter Rails | 2 Filter Rails for Secondary Lenses, Diffusers, Accessories |
| User interface | High Precision Digital Magnetic Encoder, Backlit Keypad, Colour LCD Display |
| Control | On-Board Interface, DMX via standard 5- pin XLR connectors, Wired Remote Control Accessory, Integrated Lumen radio Timo Two with Bluetooth, Ethernet, USB Type A |
| Dimming | 0-100% with High Resolution, Super- Smooth Low End Mode |
| High Speed Capability | Over 5000fps Flicker Free in High Speed Mode |
| Synchronization | Sync Input for Triggering and Syncing to Camera Shutter |
| Cooling | Low noise variable speed fans |
| Estimated LED Lifespan | 50,000hrs |
| Input (AC) | 100-240V AC, 50/60Hz, Max 8A. Neutrik PowerConTrue connector |
| Input (DC) | 48V DC, Max 13A, Can run at 100% brightness on DC input |
| Protection Class | IP65 |
| Protection Class (Power Supply) |
IP20 |
| Warranty | 3 Years on Fixtures, 12 Months on Accessories |
