The Creamsource Micro Colour features calibrated red, green, blue and white LEDs (RGBW) – so as well as producing beautiful white light in any CCT from 2,200K to 15,000K, it also has green/magenta adjustment and can produce vivid, saturated colours.
The Micro Colour has a 20 degree beam angle for maximum punch, fan-free cooling for silent operation, and is water resistant so it can be used in all weather (IP65 rated). It is lightweight yet rugged, quick to rig and its compact form factor means it can squeeze into small spaces on set.
The LED engine has been specially crafted to provide exceptional white light colour quality with typical CRI and TLCI values above 95.
More info
Rigging Options
There are three main different rigging options: Quick release Yoke, Kino Flo Style Twist-on Mount, or single 3/8th Thread.

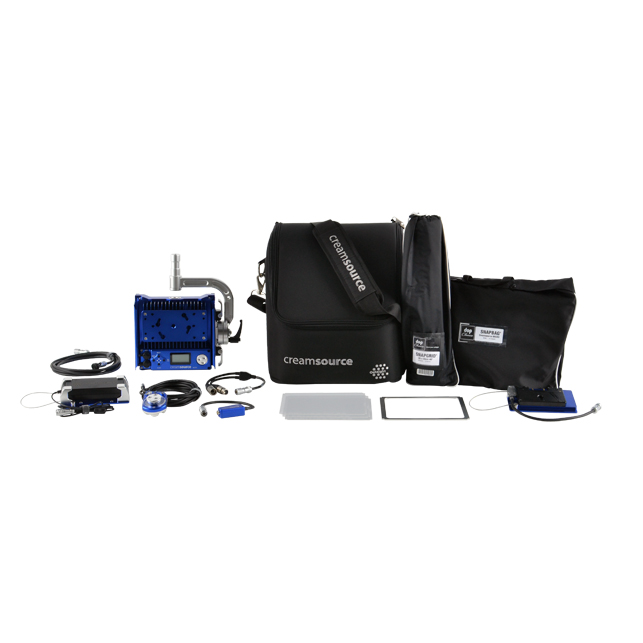

Numerous accessories are available, including a choice of V-Lock or Gold Mount style quick release battery plates for easy portability, a Snap-Bag light-bank from DoPchoice, Outsight’s high efficiency holographic lens system, and a hardwearing soft travel case.
Specifications
| CRI | Typical 95 |
| TLCI | Typical 95 |
| Colour Temperature | between 2200K – 15000K |
| Beam Angle | 20° (Half Peak Angle) |
| Mounting | 3/8” Threaded Insert. Kino Flo Twist On Style Mount Plate |
| Yoke | Removable (Quick Release System). |
| Filter Rails | 2 Filter Rails for Secondary Lenses and Gels |
| User interface | High Precision Digital Rotary Encoder, 4 Button Keypad, Graphic LCD Display |
| Control | On-Board Interface, DMX-512 with Optional Adapter Cable, Optional Wired Remote Control |
| Dimming | 0-100% with High Resolution, Super-Smooth Low End Mode |
| High Speed Capability | Over 5000fps Flicker Free in High Speed Mode |
| Synchronization | Sync Input for Triggering and Syncing to Camera Shutter |
| MaxAmbient Temperature Cooling |
40°C |
| Cooling | Passive – No Fans |
| Estimated LED Lifespan | 50,000hrs |
| Input (Fixture) | 10-32V DC, Max 8A (80W) |
| Input (Power Supply) | 100-240V AC, 50-60Hz, Max 1.3A |
| Protection Class | IP65 |
| Protection Class (Power Supply) |
IP20 |
| Weight | 3.4kg / 7.5lb (without yoke) |
| Dimensions Fixture Only |
223 x 207 x 108mm / 8.7” x 8.1” x 4.3” |
| Dimensions with yoke | 330 x 331 x 108mm / 11.8” x 13.0” x 4.3” |
| Warranty | 3 Years on Fixtures, 12 Months on Accessories |
